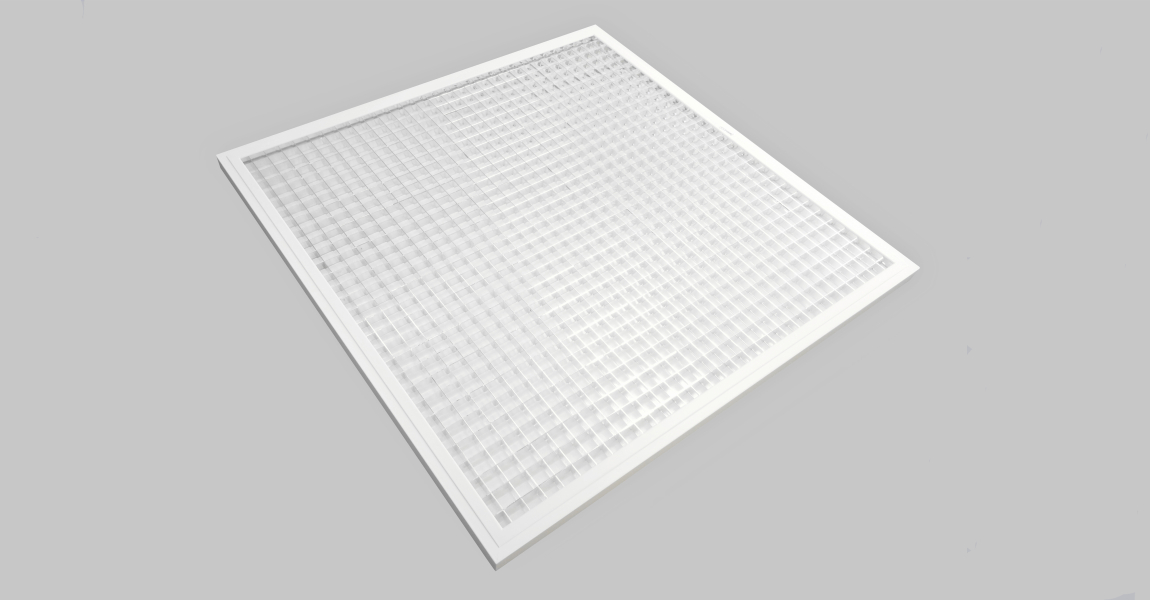

UGR<16 Eye Protection LED Panel Light

Feature


  • High quality Epistar 2835 LED chip, SDCM<4, LM-80,low light attenuation.
    RG0, remove harmful blue light, protect eyes from damage

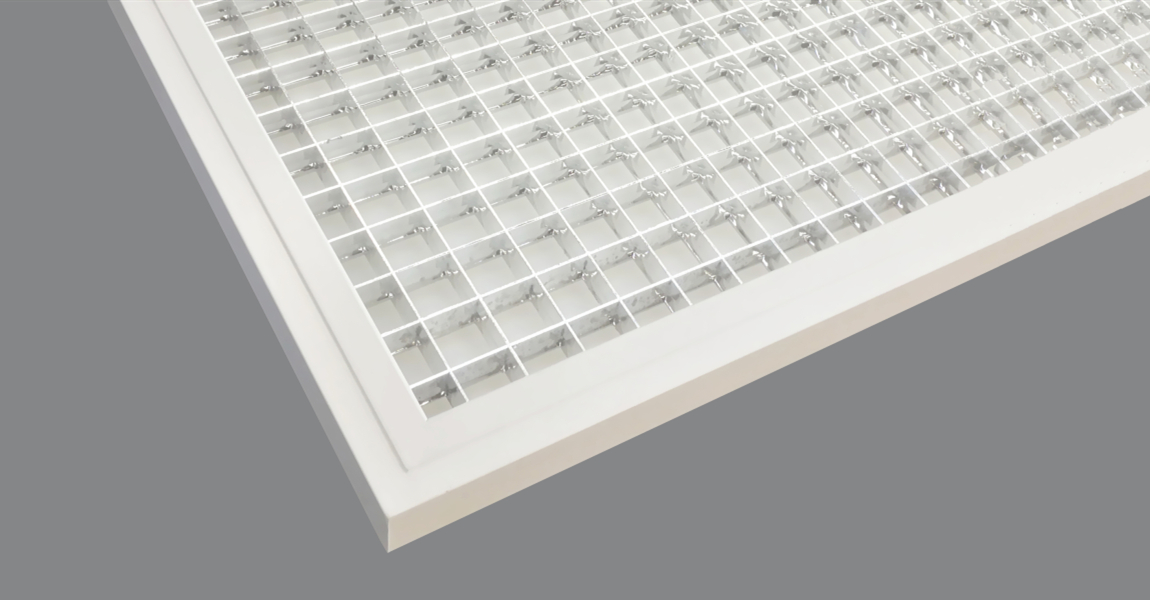

  • Acrylic light guide plate+Chrome plated grille, Double layers anti glare protection UGR <16

  • The principle of Optics, and human visual effect design, relieve eye fatigue and improve attention

  • CRI>90 Ra,  R9>60 highly restore the original color of the object

  • It is widely used in classroom lighting, laboratory lighting and library lighting

  • Surface spray treatment, smooth without scratches, easy to clean

  • Long lifespan, 5 years warranty

  • Multiple brands LED driver can be selected

  • Flicker free


Parameters


Light Emitting ModeBack-lit
Input Voltage200-240V  /  100-277V
Color Temperature5000K
Lighting Efficiency80 LM/W
Color ConsistencySDCM <4
Anti-GlareUGR<16
CRI>90Ra
R9>60
RG0
Power Factor>0.95
Frame Color White
MeterialAluminum + Chrome plated grille
Light Transmittance >90%
Waterproof LevelIIP44
Lifetime50,000H
InstallationSuspending / Embedded / Surface mounted

Specification


Item               Power  Luminous Flux (lm)Dimension (mm)Thickness (mm)
DS-0312-36-C1636W3000298x119845
DS-0606-36-C1636W3000598x59845
