Feature

•

• Ultra low glare UGR 7, more eye protection

• Super bright famous brand CITIZEN / CREE LED source

• Die-casting aluminum lamp housing, excellent heat dissipation
  A quick wire connector at the lamp bottom, faster and more convenient installation

• Up to CRI97Ra, highly restore original color

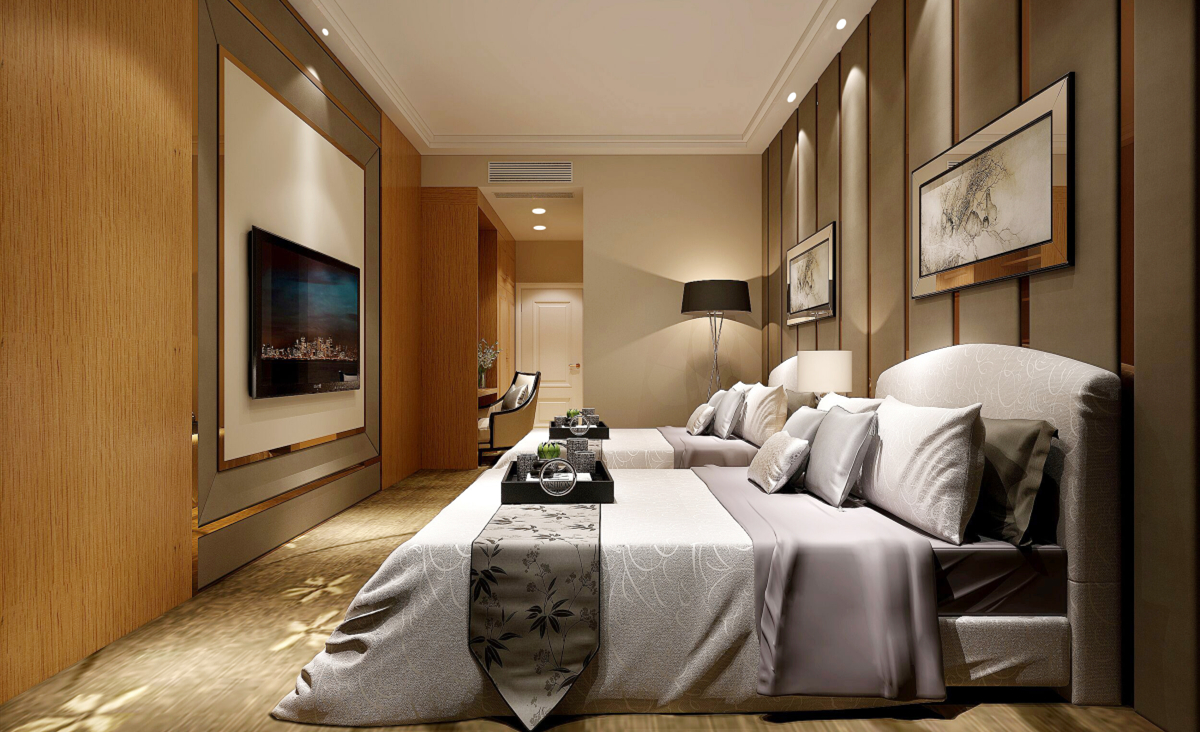

• Stylish lighting effect, very suitable for hotel lighting, bedroom lighting, shop lighting

• IP44 waterproof can be used in humid environment

• Long lifespan, 5 years warranty

• Multiple brands LED driver can be selected, no flicker

•

• Parameters



  Input Voltage	AC200-240V
  Color Temperature	2700K, 3000K, 4000K, 5000K optional
  Lighting Efficiency	70-100 LM/W
  Anti-Glare	UGR 7
  CRI	80Ra 、90Ra 、97Ra
  Power Factor	>0.95
  Lifetime	50,000H
  Waterproof Level	IP44
  Dimmable	N / 0-10V / Triac Dim / Dali / DMX
  Installation	Recessed

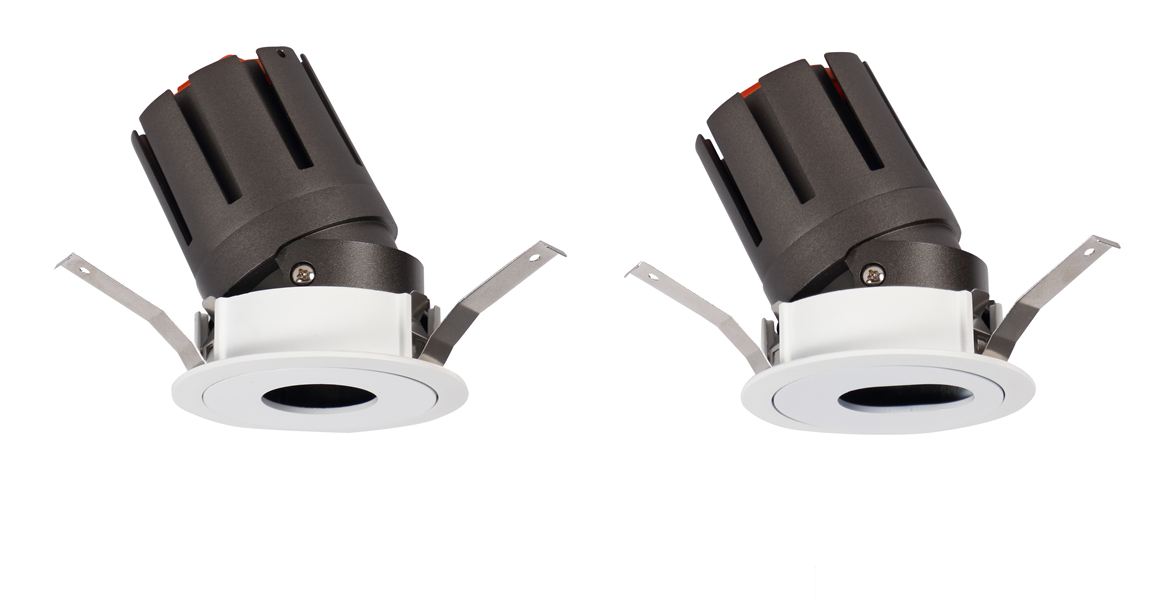

  Adjustable	360°; rotation, 25°; pivot
  Housing Materials	Die-casting aluminum alloy



  Specification

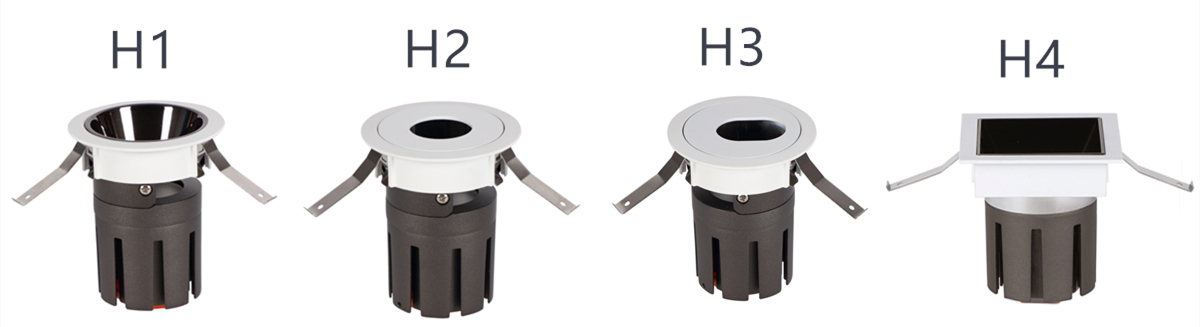

  Item	Power	Luminous Flux (lm)	Dimension    (mm)	Cut-out (mm)	Beam Angle
  DS-CL-5W-H1	5W	350-450	D65*H91	55	15° 、24° 、38°
  DS-CL-7W-H1	7W	490-630	D65*H91	55	15° 、24° 、38°
  DS-CL-8W-H1	8W	560-720	D86*H106	75	15° 、24° 、38°
  DS-CL-8W-H2	8W	560-720	D86*H106	75	15° 、24° 、38°
  DS-CL-8W-H3	8W	560-720	D86*H106	75	15° 、24° 、38°
  DS-CL-8W-H4	8W	560-720	85*85*H106	75	15° 、24° 、38°
  DS-CL-12W-H1	12W	840-980	D86*H106	75	15° 、24° 、38°
  DS-CL-12W-H2	12W	840-980	D86*H106	75	15° 、24° 、38°
  DS-CL-12W-H3	12W	840-980	D86*H106	75	15° 、24° 、38°
  DS-CL-12W-H4	12W	840-980	D86*H106	75	15° 、24° 、38°
  DS-CL-15W-H1	15W	1050-1350	D113*H134	100	15° 、24° 、38°
  DS-CL-20W-H1	20W	1400-1800	D113*H134	100	15° 、24° 、38°

• °
