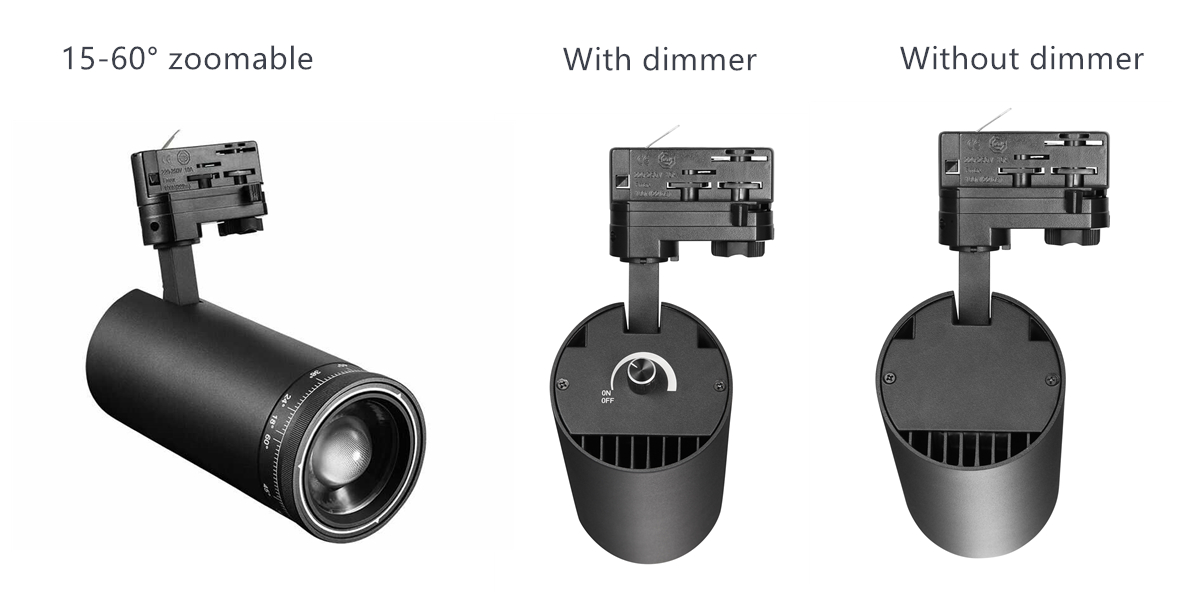

15-60° Zoomable LED Track Light

Feature

  • Beam angle adjustable zoomable 15°-60 °with uniform light distribution

  • 2/3/4/6wires  Global / Powergear connector

  • Die casting aluminum housing with convective holes for better heat dissipation

  • 355degree adjustable horizontaly, 90degree adjustable vertical

  • High lumen Citizen/Bridgelux/Luminus/Cree COB LED chip, brilliant quality

  • Anti-glare design UGR >17, more eye protection

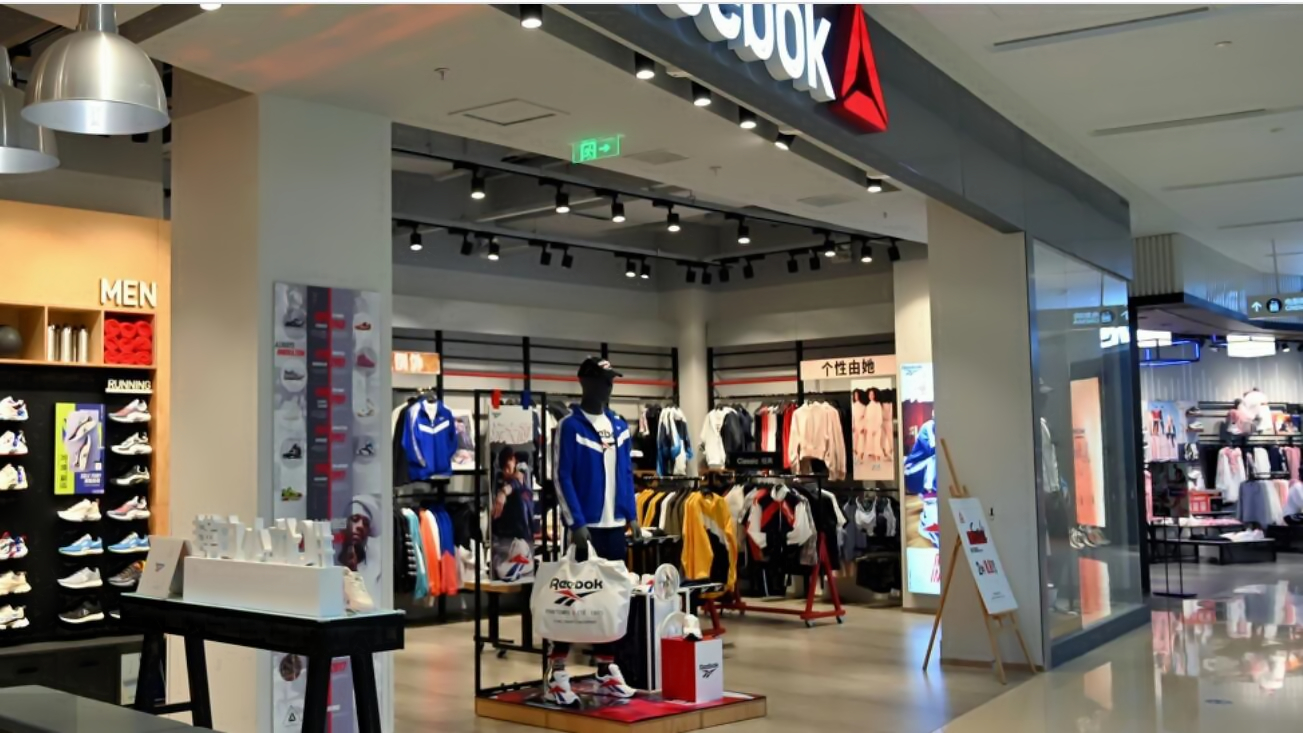

  • CRI 80,90, 97Ra, very suitable shop lighting, exhibition lighting,supermarket lighting

  • Long lifespan, 5 years warranty

  • Osram / Tridonic / Philips brand LED driver can be selected,

  • No flicher

  •

Parameters


Input Voltage200-240V
Color Temperature2700K, 3000K, 3500K, 4000K, 5000Koptional
Housing ColorWhite / Black / Silver
Beam Angle 15-60° adjustable
SDCM<3
Lighting Efficiency80-90 LM/W
Anti-GlareUGR <17
CRI80Ra  90Ra 97Ra
Power Factor>0.95
Lifetime50,000H
DimmableN / 0-10V / Triac Dim / Dali / DMX Optional
AdapterGlobal / Powergear 2 / 3 / 4 / 6 wires



Specification

Item                  Power    Luminous Flux (lm)   Radiator Bottom With DimmerSize(mm)
DS-RL20W-COB-Z120W1600-1800NA&Phi;81*L178*H185
DS-RL20W-COB-Z220W1400-1600Yes&Phi;81*L178*H185
DS-RL35W-COB-Z135W2800-3150NA&Phi;92*L205*H185
DS-RL35W-COB-Z235W2450-2800Yes&Phi;92*L205*H185
