Anti-glare UGR 7 LED Downlight

Feature


  • Ultra low glare UGR 7, more eye protection

  • Super bright famous brand CITIZEN / CREE LED source

  • Die-casting aluminum lamp housing, excellent heat dissipationA quick wire connector at the lamp bottom, faster and more convenient installation

  • Up to CRI97Ra, highly restore original color

  • IP44 waterproof can be used in humid environment

  • Trimless appearance, more simple and fashionable

  • Long lifespan, 5 years warranty

  • Multiple brands LED driver can be selected, no flicker


  • Parameters

    Input VoltageAC200-240V
    Color Temperature2700K, 3000K, 4000K, 5000K optional
    Lighting Efficiency70-100 LM/W
    Anti-GlareUGR 7
    SDCM<3
    CRI80Ra 、90Ra 、97Ra
    Power Factor>0.95
    Lifetime50,000H
    Waterproof LevelIP44
    DimmableN / 0-10V / Triac Dim / Dali / DMX
    InstallationRecessed
    Adjustable

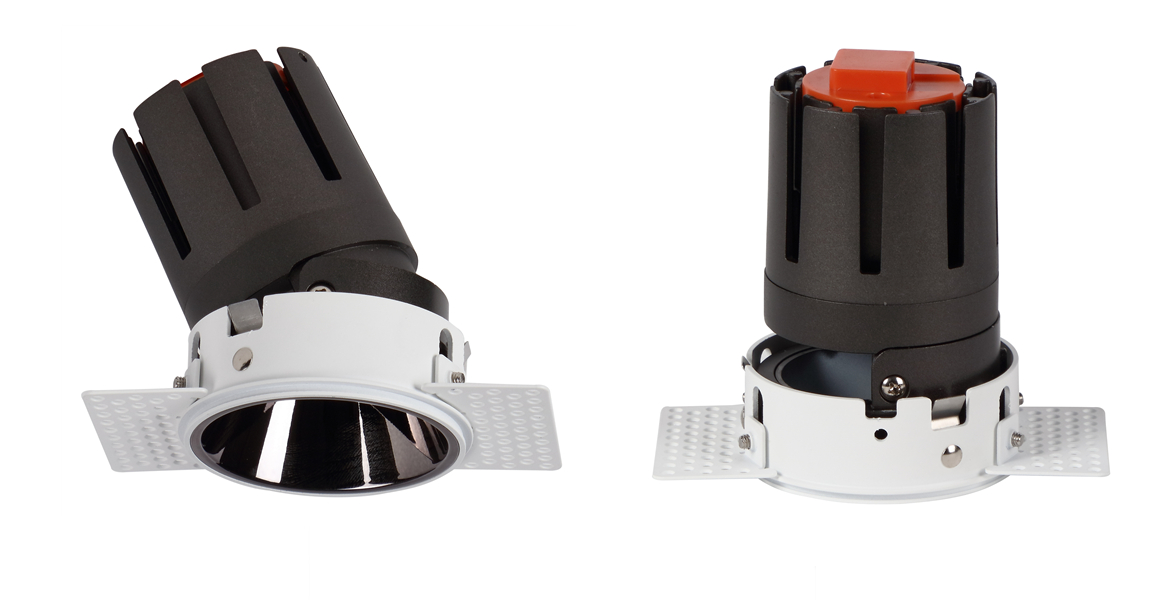

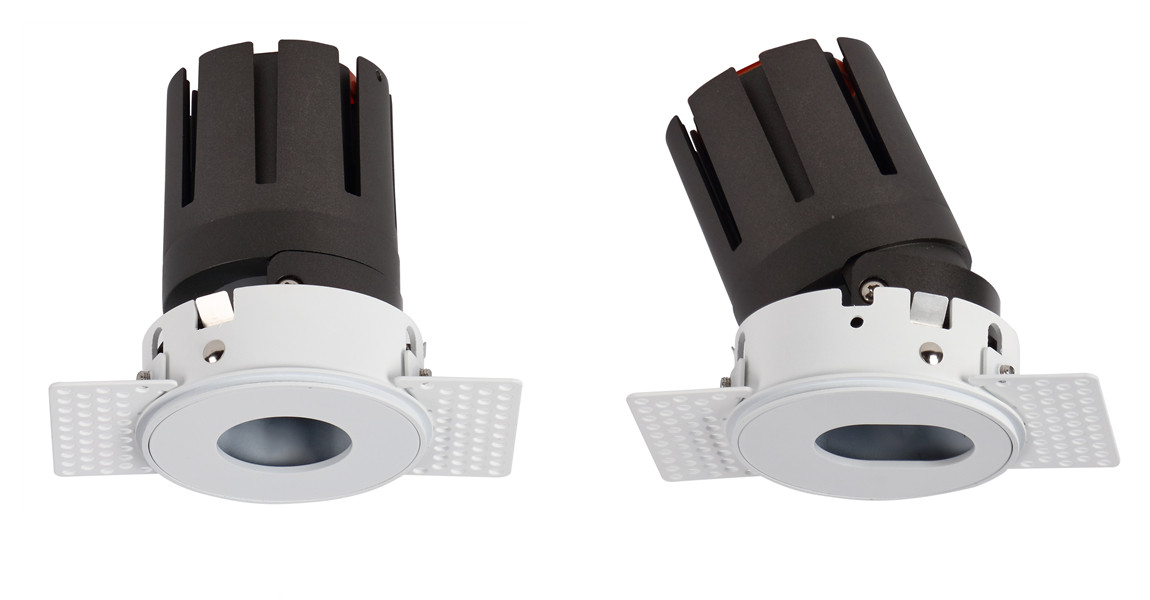

    360° rotation, 25° pivot

    Housing MaterialsDie-casting aluminum alloy



    Specification

    Item                  Power    Luminous Flux
    (lm)
    Dimension
    (mm)
    Cut-out
    (mm)
    Beam Angle

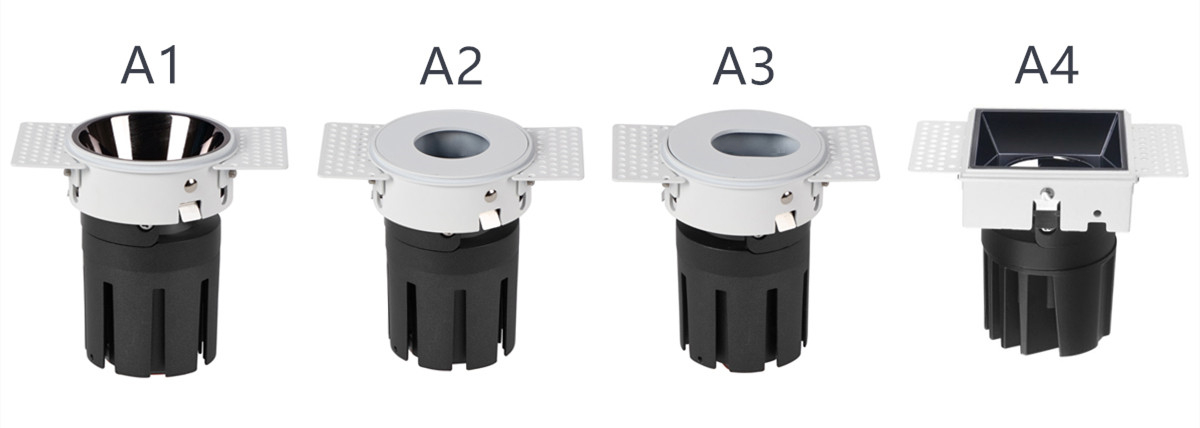

    DS-CL-5W-A15W350-450Φ55*H915515° 、24°、38°
    DS-CL-7W-A17W490-630Φ55*H915515° 、24°、38°
    DS-CL-8W-A18W560-720Φ75*H1067515° 、24°、38°
    DS-CL-8W-A28W560-720Φ75*H1067515° 、24°、38°
    DS-CL-8W-A38W560-720Φ75*H1067515° 、24°、38°
    DS-CL-8W-A48W560-72075*75*H1067515° 、24°、38°
    DS-CL-12W-A112W840-980Φ75*H1067515° 、24°、38°
    DS-CL-12W-A212W840-980Φ75*H1067515° 、24°、38°
    DS-CL-12W-A312W840-980Φ75*H1067515° 、24°、38°
    DS-CL-12W-A412W840-980Φ75*H1067515° 、24°、38°
    DS-CL-15W-A115W1050-1350Φ100*H13410015° 、24°、38°
    DS-CL-20W-A120W1400-1800Φ100*H13410015° 、24°、38°
